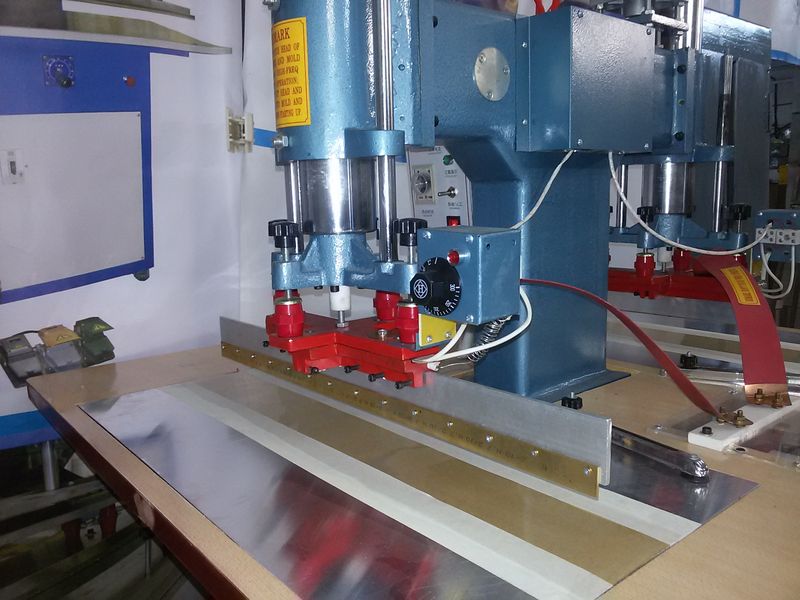

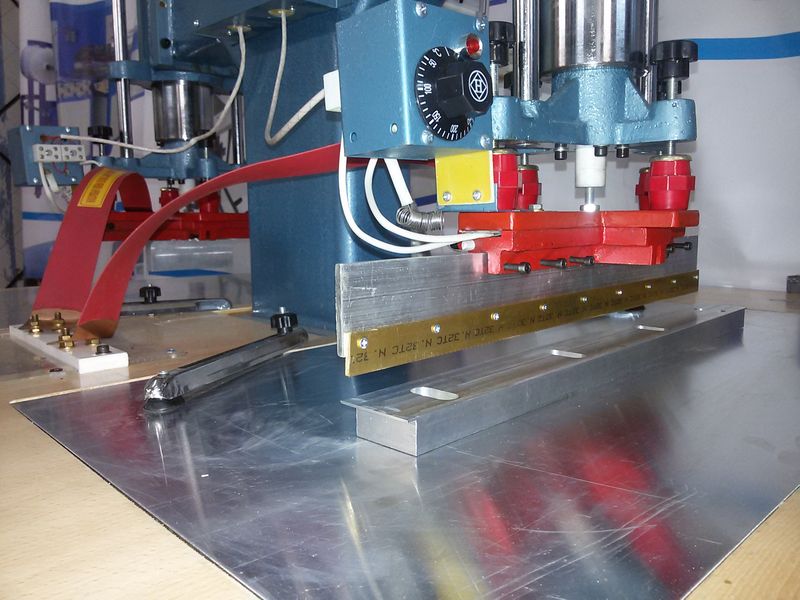

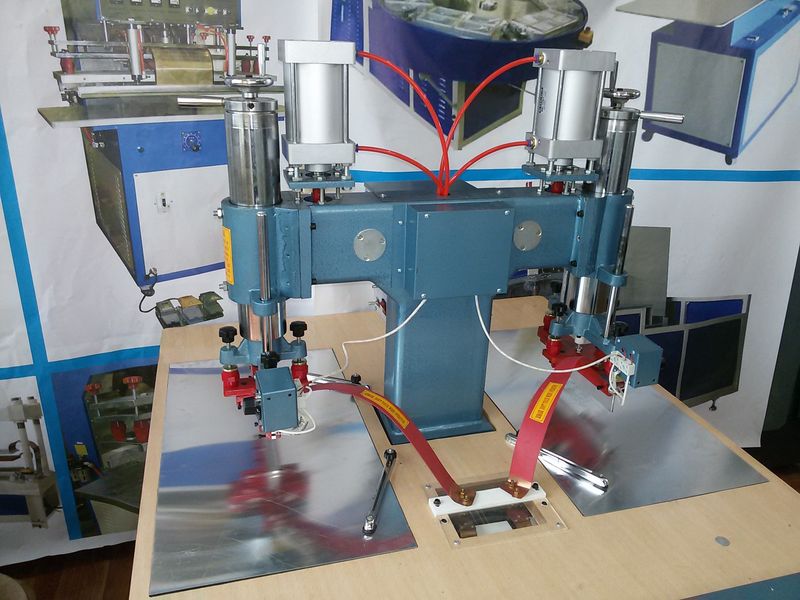

Model 2p-5

The TVCH 2P-5 machine is designed for welding plastics, applying patterns and texts.
The model is ideal for manufacturing the following PVC products:

harpoon and stretch ceiling cloths;
blister packaging and soft bags;
office supplies (pencil cases, folders, covers for notebooks, books, packaging for markers, pencils);
business printing (business cards, courier envelopes, covers);
raincoats and awnings;
inflatable pools, boats, toys.

Model 2P-5 performs welding at the molecular level, so that the seam is smooth, tear-resistant and imperceptible.

Power supply: 380V 50Hz
Power: 5kW
Drive: pneumatic and mechanical
Working table: 500 x 800 mm
Welding area: 20000 mm2

Technical parameters	Unit
Size	m	1,8х1,3х1,63
Volume	m3	4,2
Gross weight	ru	Four hundred
Net weight	ru	Three hundred fifty
The size of the bottom plate	mm	500х800
Size of the top plate (crosspiece)	mm	150х260
Distance between the center of the plate and the rack body	mm	Two hundred seventy
Working stroke	mm	Fifty
Distance from the bottom to the top plate (crosspiece)	mm	One hundred forty
Frequency	MHz	27,12
Power supply		380 V 50 Hz
Power consumption	kVA	7,5
Means of control		ammeter, voltmeter
Size of the pneumatic cylinder on each table	DMM x L mm	100 х 100
Air pressure	MRA	0,6
Air cleaning products		no
Concentrated welding surface, max	mm2	Twenty thousand
Adjusting the welding time		there is
Adjusting the delay time (cooling down)		no
Adjusting the release time		no
Adjusting the lifting time		no
Power level adjustment		there is
Air pressure adjustment		there is
Adjustment of the input voltage		there is
Stove heating		there is
Disabling the protection unit (manual mode)		there is
Generator lamp made in China		DB 947, FU947
Generator light analogue of Russia		7Т 85RB
