Automatic welding line

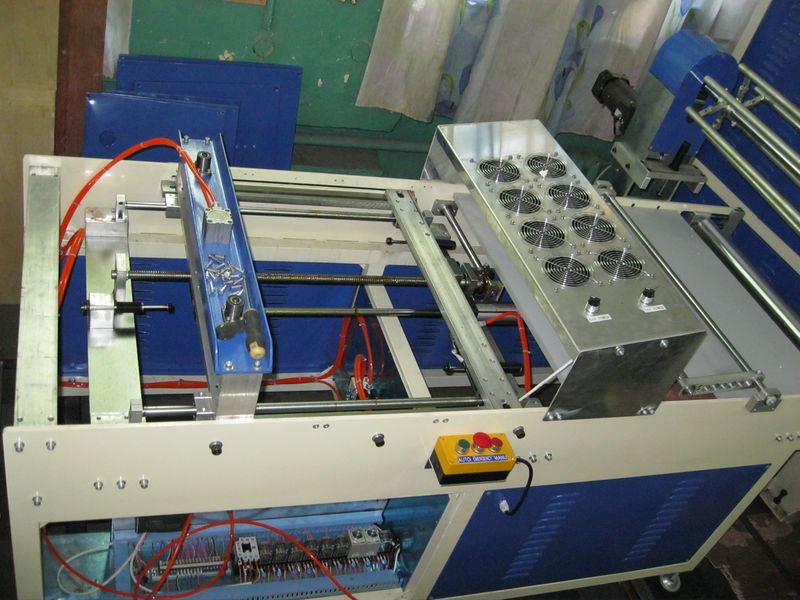

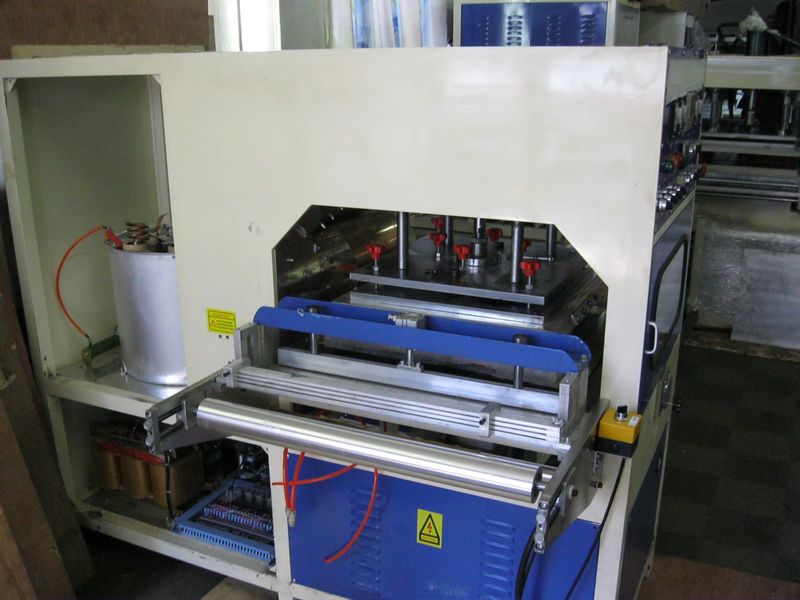

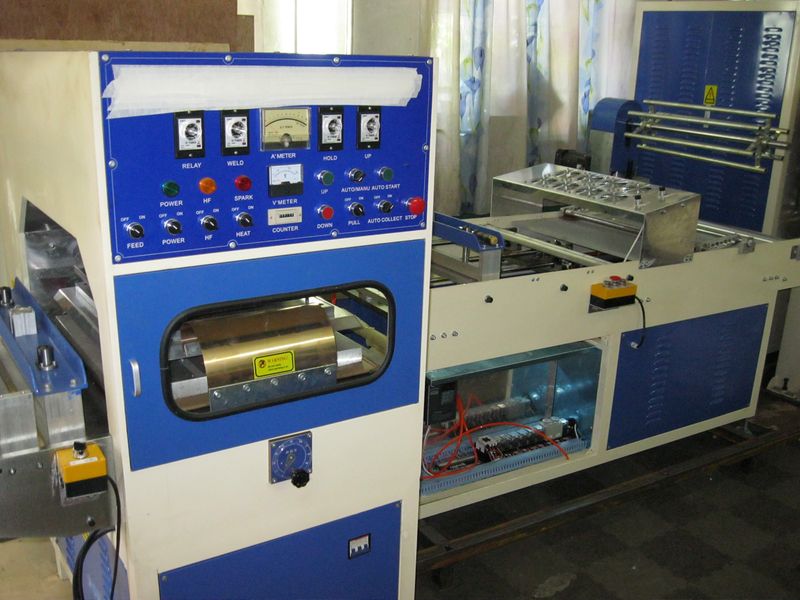

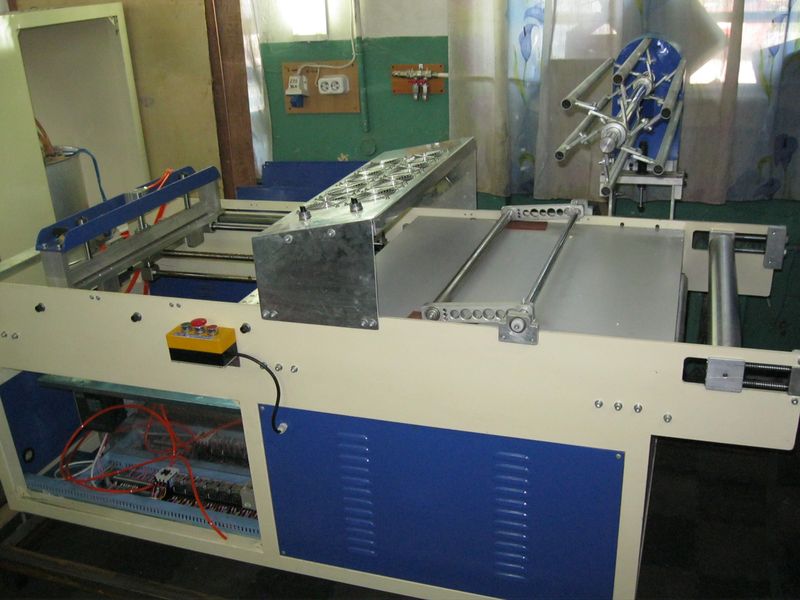

The machine with an automatic HDV welding line (high frequency current) is designed for cutting and stamping products made of rolled polymer materials. Ideal for mass production of bags and bags made of laminated polypropylene (PP).
The knife made of high-quality alloy steel ensures maximum cutting accuracy. The operator only needs to specify the length and width of the product — the automatic TVCH welding line will do everything else itself. The seam formed at the molecular level is characterized by high strength and tightness. The volume of production waste when using such a machine is minimal.

Power: 10 kW

Working stroke of the upper plate: 100 mm

Top plate size: 600х600 mm / 600x800 mm

Top plate heating

Conveyor width: 650 mm,

Conveyor step: 600 mm / 800 mm

Features of purpose and design:

Fully automatic line, allows you to perform products directly from the roll.

Technical parameters:

Performance: 15-20 cycles per minute

Power consumption: 30 KW

Occupied area: 1.6 m x 6.5 m

The actuator is pneumatic, including the movement of the conveyor
Top plate heating.

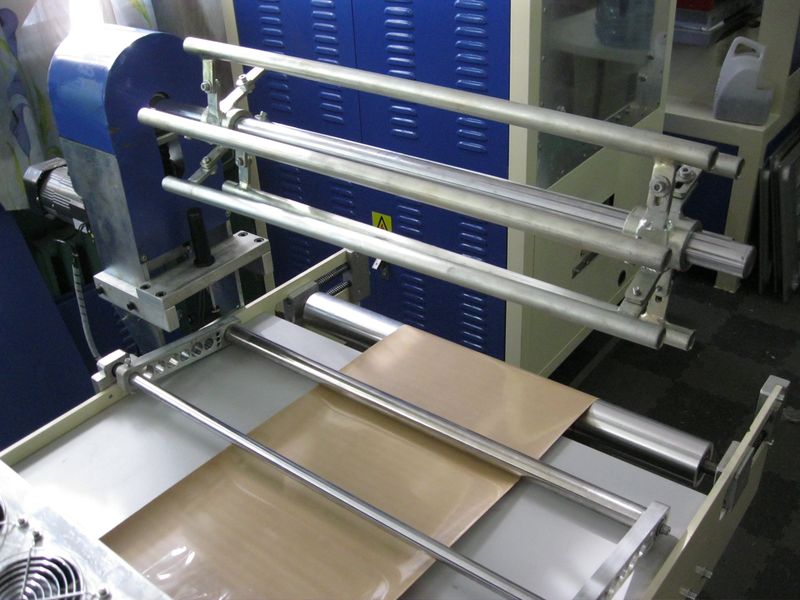

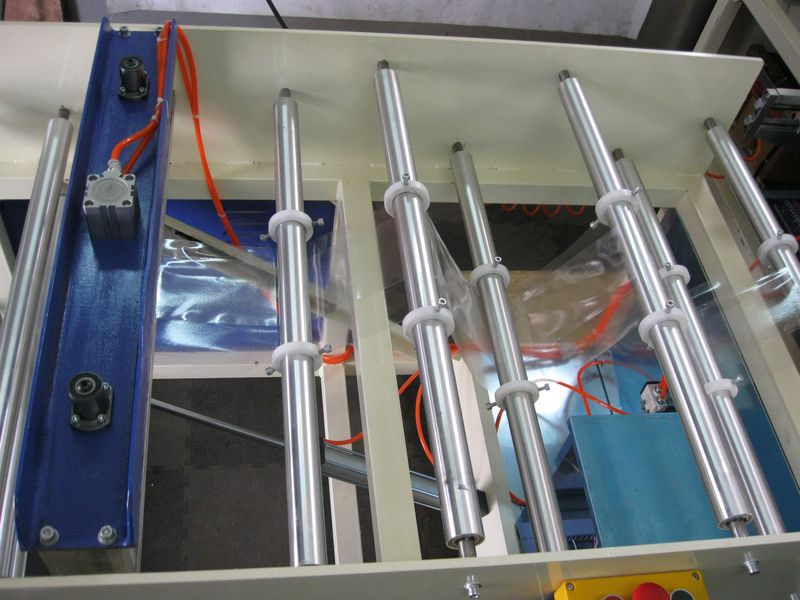

The system of uniform feeding and pre-tension from several rolls.
Adjusting the pressure and stroke of pneumatic cylinders.

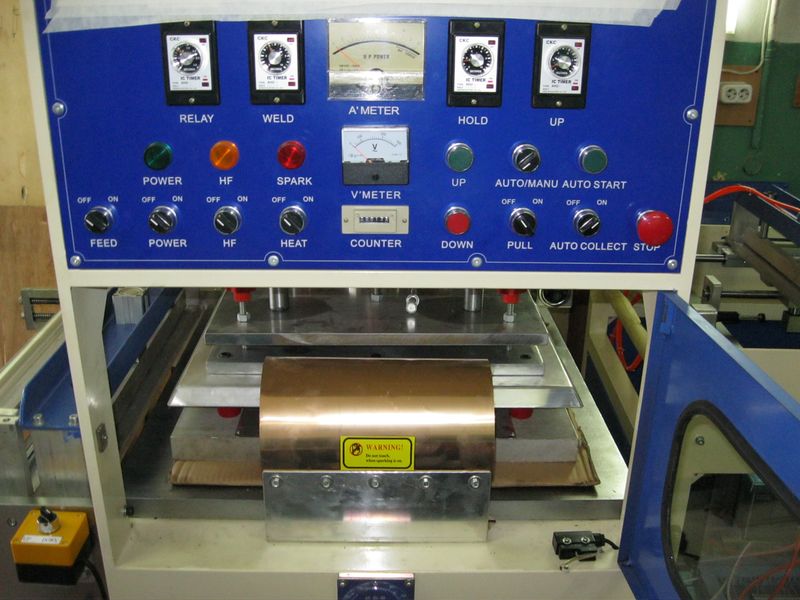

Five timers. Time of lowering, welding, delay, lifting, movement
Manual automatic mode. Product counter (cycles)
Air cooling.

Receiving system: winding on the shaft.
