Model With 10-cu

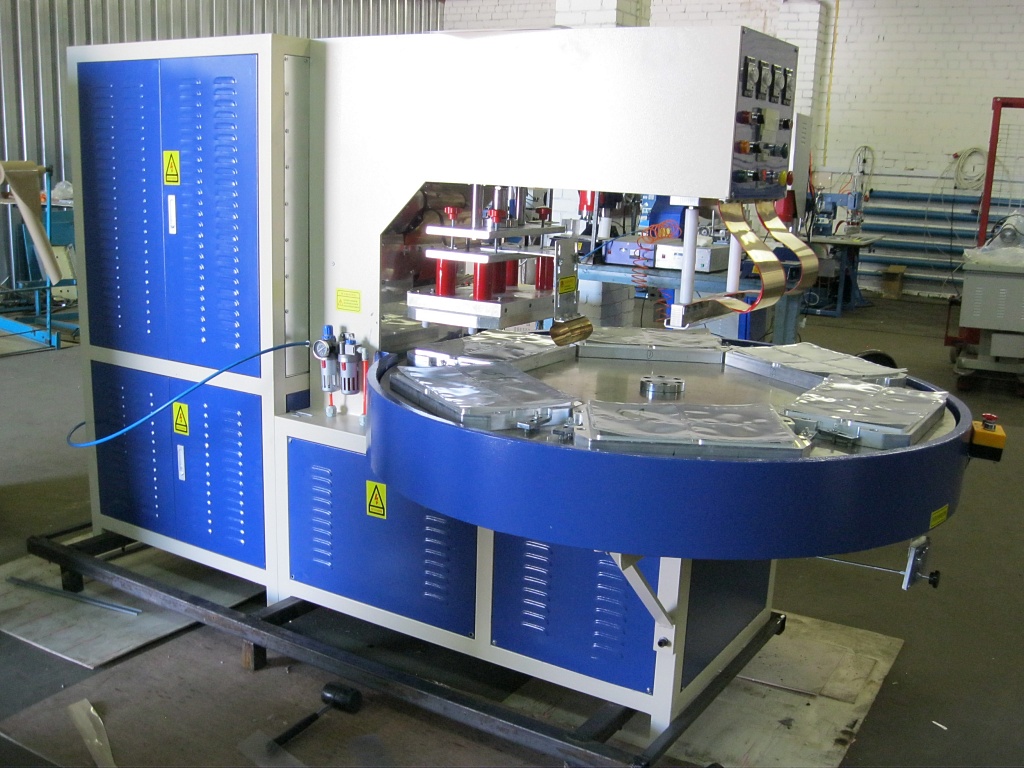

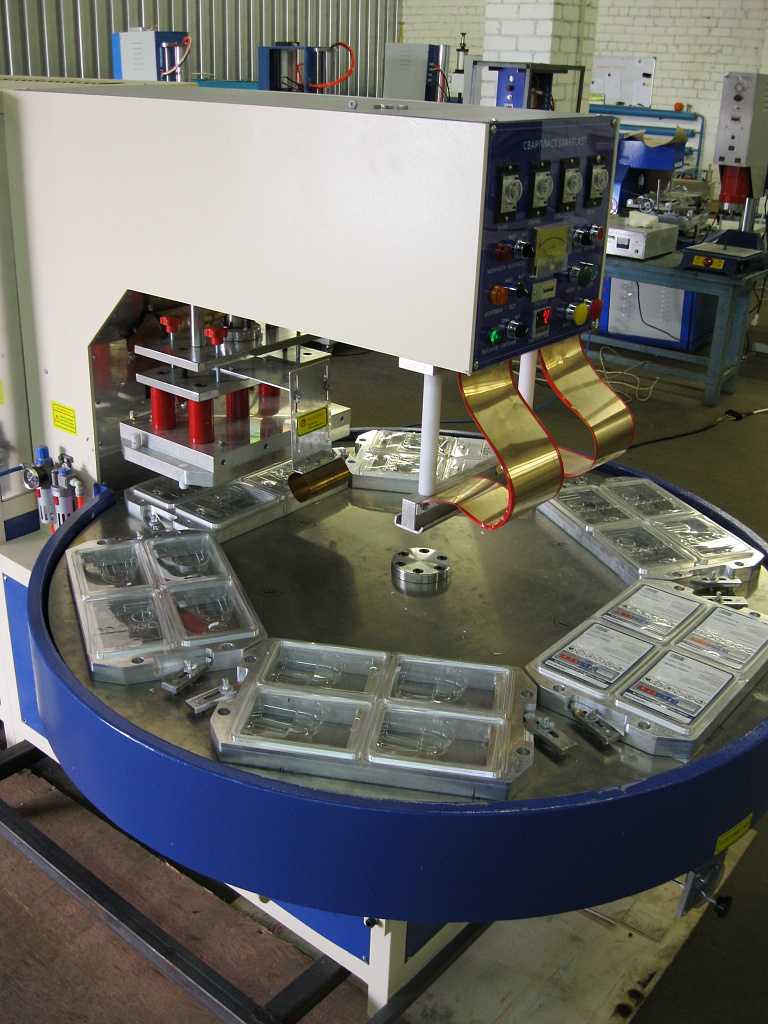

The C10-KR carousel type machine is equipped with an automatic drive and is designed for high-frequency welding of PVC sheets, blister packaging with a cardboard substrate, double blister, medical containers for blood transfusions, products from APET film, etc.it can Also be used for stamping synthetic materials and the manufacture of rubber Slippers-slates.
In addition to soldering under pressure, the model WITH 10-KR is able to perform automatic trimming of products along the contour. Equipped with a spark extinguishing system.
You can order a TVCH machine WITH 10-KR by phone in Moscow: +7 919 999 44 55.


Power supply: 380V 50Hz

Power: 10 kW

Drive: automatic carousel

Top plate: 300х400 mm

Welding equipment: 4 places on the top plate, the size of one place is 120х180 mm

Working tables on the carousel: 6, with a diameter of 1800 mm and 6 beds on the carousel for 4 seats

Pneumatic cylinder: 600 kg
