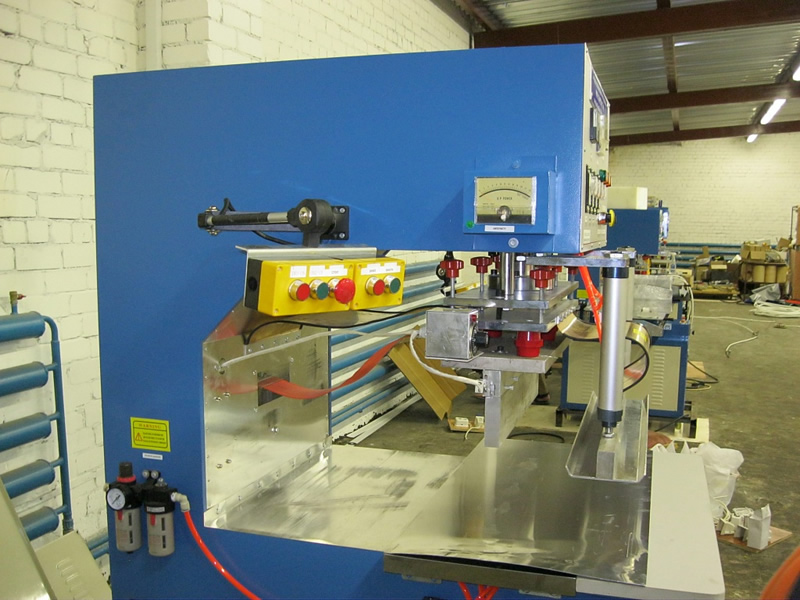

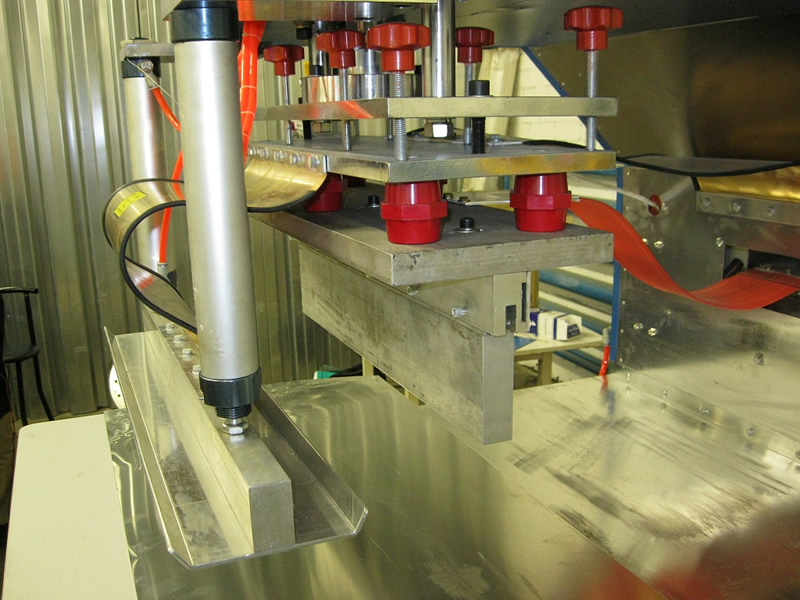

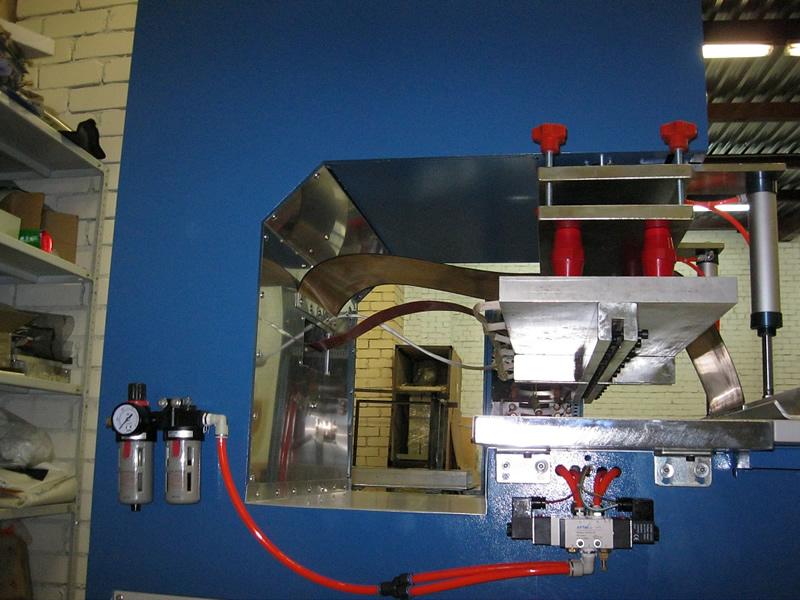

12 kW welding machine

The 12 kW awning welding machine allows you to create seams of unlimited length in one working cycle. The connection of reinforced polyvinyl chloride webs is carried out at the molecular level under the influence of a high frequency current (HDV). The seam is perfectly smooth, tight and durable to break.
The 12 kW machine is ideally suited for welding PVC, canvas, industrial canvas, advertising banners, PVC tarpaulins, stretch ceilings, tents, etc.
It is equipped with a spark protection system, but should still be located in a dry and dust-free place.

Power Supply: 380 V

Output power: 12 kW

Power consumption: 18 kW

Top plate: 1100 mm x 300 mm

Working table size: 1200 x 500 mm

Air cylinder pressure: 600 kg

Length: 720 mm

Width: 1100 mm

Height: 1800 mm

Net weight: 540 kg
