Double-post HDTV machines

Company Polistan.ru supplies the Russian market with modern, reliable and practical HDTV machines for the production of stretch ceilings directly from leading manufacturers. In this section, you will find two-post HDTV machines designed for fast and efficient welding of PVC using high-frequency current. HDTV is carried out at the molecular level, which eliminates the risks of heating, melting, and damage to the areas adjacent to the junction. The finished seam is almost invisible, perfectly smooth and very resistant to stretching and tearing (it can withstand a load of up to 100 kg/m).

Two-post HDTV machines are suitable for simultaneous welding of PVC and harpoon production.

Technical and commercial offer for a machine for welding materials based on PVC.

Company Polistan.ru offers you to buy the best two-post HDTV machine for welding stretch ceilings on the Russian market.

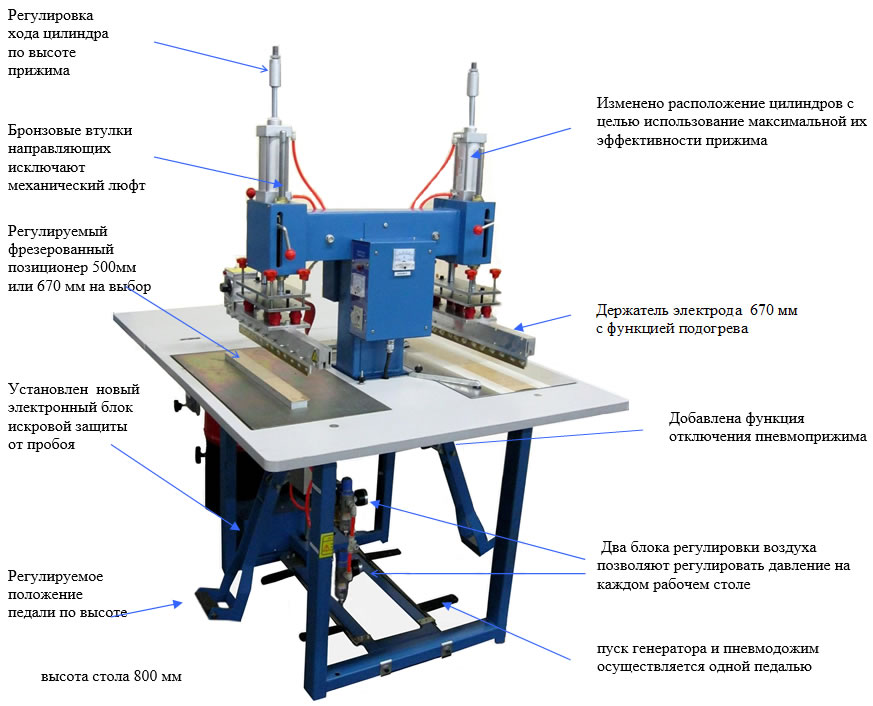

ADVANTAGES OF OUR MACHINE.

1.electrical components are manufactured in Japan.Korean.Taiwan.

These components give and guarantee additional reliability in the operation of the machine.

2.the machine is equipped with two pneumatic cylinders with height adjustments for lowering the electrode.

Each table can be set to a different pressure on the clamp.

3.the mechanical clamp and pneumatic clamp can work independently of each other.

4.the mechanical design of the machine is designed for the use of electrodes with a length of 670 mm. (the maximum length of Italian electrodes)

The fewer joints ,the stronger the seam.higher performance.

5.modern electronic, adjustable breakdown protection system (spark protection)

Helps avoid breakdown of the dielectric.extending the duration of the equipment, in this case, the electrodes.

6.the generator lamp E3062 has a resource of 8000 hours of operation.

The power output of the 3.4-4.5 kW. The concentrated welding area is 13000mm2.

Only 20% of the equipment capacity is used for ceiling welding.

Kolosalny 8 times the power reserve.

7.our equipment can operate at 220 volts or 380 volts.

There is a built-in voltage regulator.

8.machine two posts.alternate operation of operators.one side is web welding, the other is harpoon welding.

You can also pick up two harpoon posts.

8.equipment, spare parts, and accessories are always available.

9.warranty, commissioning, post-sale support.

10.training in technology, configuration, and hardware setup is free of charge.

On which machine we teach that to you and we will ship.

COMPLETE SET OF THE MACHINE

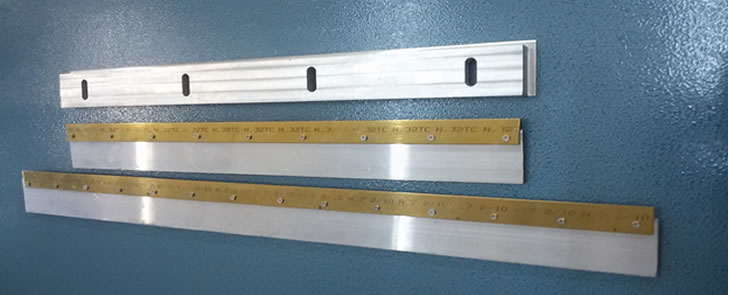

1.A set of duplicated electrodes(for a cloth-1 piece. for a harpoon-1 piece.)

2.the harpoon holder is milled.1pc.

3.dielectric.(electric cartons)1kg-5M2

4.operating instructions in Russian. information on the CD.

5.Sales contract.

6.Act of receiving the transfer.

7.Warranty obligation.

8.Certificate.

9.database of suppliers of materials.

10.measuring and cutting programs.

11.training in welding setup and technology is free of charge.

 The compressor is purchased independently, not included in the package.

CONNECTION CONDITIONS

NOTE

1.grounding.

2.the diameter of the grounding conductor is the same or more as that of the electric drive.

3.the machine must be connected via an automatic switch, at least 25A.

4.the diameter of the plastic air hose is 8mm.

OVERALL DIMENSIONS

The Assembly 1. 05x1. 6x1. 45 consists of two parts.

Generator and press.

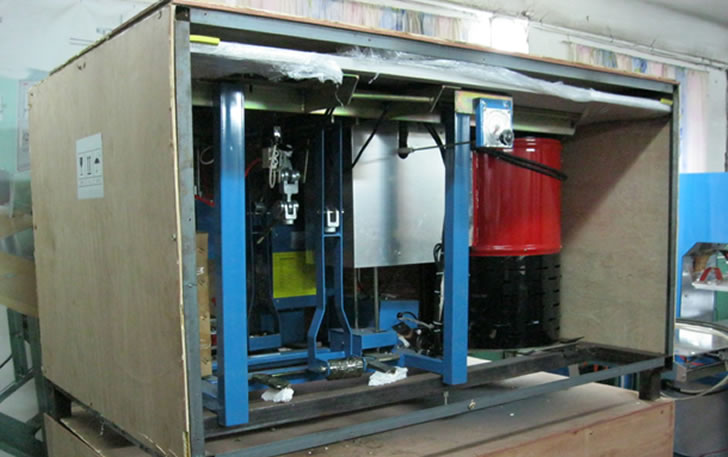

To be sent by the transport company, we pack it in a box.

1.2х1.8х1.0

Volume 2, 2m3. Weight 300kg.

Cost 250 thousand rubles

Payment to your Bank account or in cash.
