The insulation (dielectric)

Product description

Film-electric cardboard PEC t. 0, 17-0, 27/0, 3-0, 45 mm. film-electric Cardboard PEC t. 0, 17-0, 27/0, 3-0, 45 mm

PEK film-electric cardboard is a composition consisting of electric cardboard glued with a polyethylene terephthalate film.

Detailed description and technical characteristics

Film-electric cardboard PEC t. 0, 17-0, 27/0, 3-0, 45 mm

Film-electric cardboard PEK TU 3491-003-31885305-2003

PEK film-electric cardboard is a composition consisting of electric cardboard glued with a polyethylene terephthalate film. Film-electric cardboard PEC is used for grooved insulation, insulation of the "cover-wedge" type in low-power electric machines in the insulation system of the class e heat resistance (120°C). PEK film-electric cardboard is suitable for mechanized isolation of stators. The service life is 20,000 hours.

Main technical characteristics of film-electric cardboard PEC

Name of the indicator	Unit	Film electric cardboard PEC
Nominal thickness	mm	0,17 ±0,02	0,27 ±0,03	0,32 ±0,03	0,45 ±0,04
Breakdown voltage, at least in the initial state: at a temperature of 15-350C and humidity of 45-75% after exposure for 48 hours. at a temperature of 23 + 20C and a humidity of 93+2%after inflection	sq	7,0 7,0 7,0	8,0 7,0 7,0	11,0 9,0 9,0	8,5 7,5 7,5
Specific volume electrical resistance, at least, at a temperature of 15-350C and humidity of 15-35% after exposure for 48 hours at a temperature of 23 + 20C and humidity of 93+2%	Om*cm	11013 11012	51013 11012	51013 11012	51013 11012

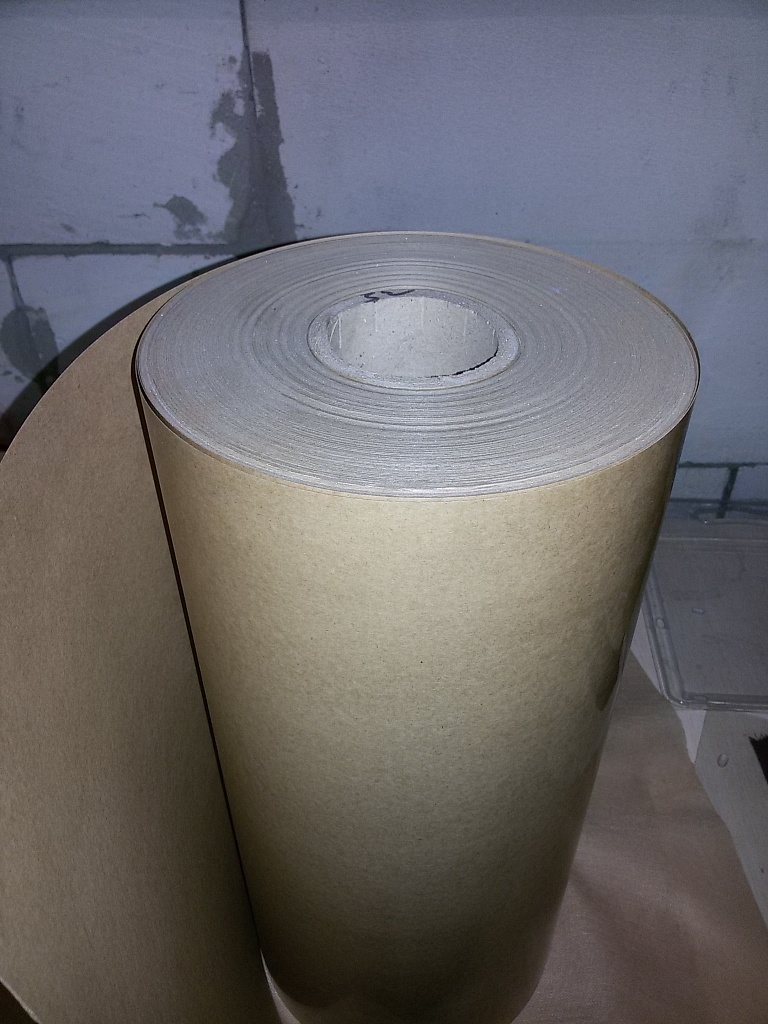

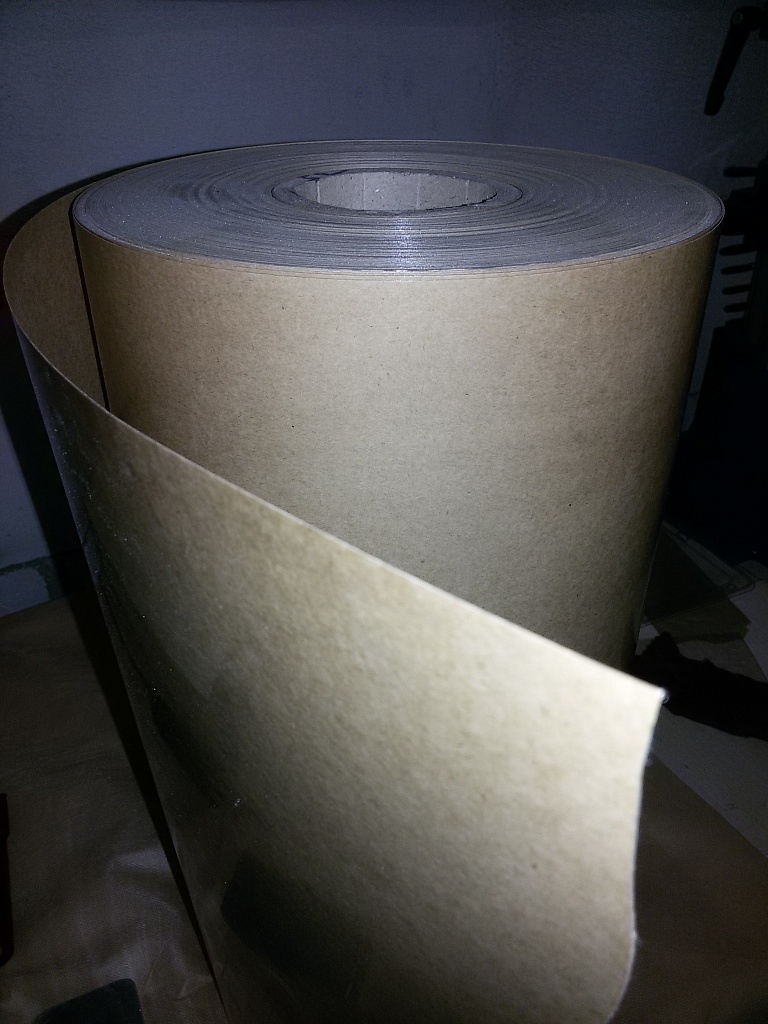

Film-electric cardboard PEC are supplied in rolls with a diameter of 100 to 350 mm, a width of at least 450 mm, tightly wound on a rigid sleeve with an internal diameter of 76 mm or in sheets with sizes from 200 to 860 mm.the Warranty period is 6 months from the date of manufacture. Transportation and storage conditions must comply with GOST R 51121 and GOST 27386.
